Description
Elite 502

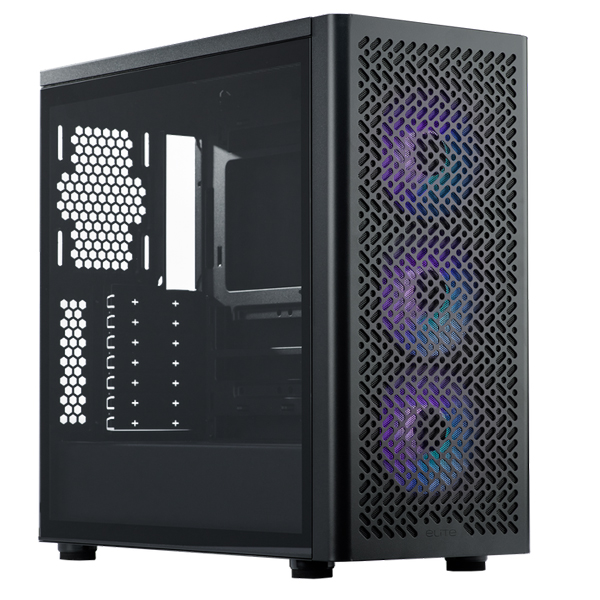

Cooler Master Elite 502 ATX Entry-Level Mid-Tower ATX Case Supports Back-Connected Motherboard, Up To 420mm Radiator, 410mm GPUs and pre-installed 3X 120mm A-RGB Fans – Black Colour
Features:
-Tempered Glass Side Panel
-Equipped with 3x 120mm A-RGB fans
-Designed for mid-to-entry-level builders
-Advanced Mesh Front Panel for enhanced airflow
-33-35mm of space behind the MB-tray for easier cable management
-Featured USB-C port for multi-purpose and streamlined data transmission
-Supports up to 420mm radiator, 410mm GPUs & modern back-connector MBs
-Removable HDD cage for easy access during installation and system upgrades
-Supports up to 7x 120mm fans, top-mounted 360mm & front-mounted 420mm radiator
Specifications:
-Product Name: Elite 502
-Product Number: E502-KGNN-S00
-Colour: Black
-Material: Steel (Exterior / Side Panel (Right)), Tempered Glass (Side Panel (Left))
-Dimensions: (L)474x(W)230x(H)481mm, Volume: 49.73L
-Motherboard Support: ITX, Micro ATX, ATX (Supporting Back-connector Motherboard) / E-ATX (*up to 30.5×27.7cm motherboards, may impact cable management)
-Expansion Slots: 7
-Drive Bays: 5.25” ODD: 0
-Drive Bays: 3.5” HDD: 2
-Drive Bays: 2.5” SSD: 2 (Max. 6)
-USB Ports: 1x USB-A 3.2 Gen 1, 1x USB-C 3.2 Gen 1
-Audio I/O 3.5mm: 1x 3.5mm Combo
Fan Support:
-Front (Filtered): 3x 120mm / 140mm
-Top (Filtered): 3x 120mm / 2x 140mm
-Rear: 1x 120mm
Pre-Installed Fans:
-Front: 3x 120mm ARGB
Radiator Support:
-Front: 120/140/240/280/360/420mm (Limit: 457x140x27mm)
-Top: 120/140/240/280/360mm
-Rear: 120mm
Clearances:
-CPU Cooler: 170mm
-Power Supply: 170 / 210mm (w/o HDD Cage)
-GPU (installed 3.5” HDD BRK): 360 / 410mm (w/o front radiator)
-Cable Routing: Behind MB Tray: 33 – 35mm
-Dust Filters: Top, Front, Bottom
-Power Supply Support: ATX
-Weight: 9400g
-Dimensions: (L)55 x (W)32 x (H)55.4cm
What’s in the box:
-1x Cooler Master Elite 502 ATX Case
