Carbide Series 678C Low Noise Tempered Glass ATX Case — White
SOPHISTICATED STYLE

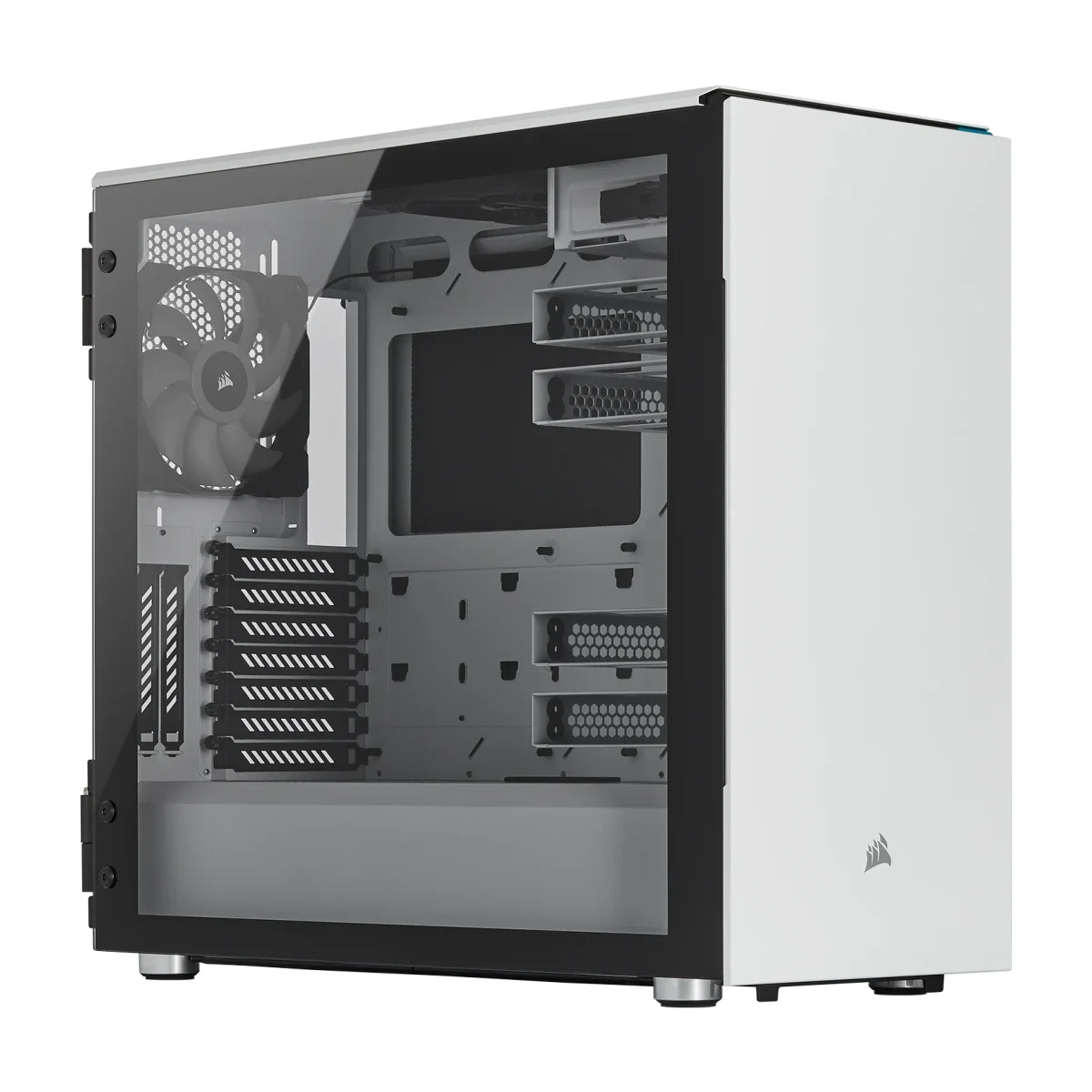

The CORSAIR Carbide Series 678C is a mid-tower ATX case optimized for quiet operation, blending sophisticated style and a plethora of versatile cooling and storage options.
EXTENSIVE SOUND DAMPENING
High-density EVA foam in the side, front and roof panels dampens noise from all your components – or switch to the included dust filter roof panel when airflow is your top priority.
A MULTITUDE OF COOLING OPTIONS
Fits up to 9x 120mm or 8x 140mm cooling fans.
Multiple radiators in sizes up to a 420mm.
TAKE COMMAND OF YOUR COOLING
A PWM fan repeater controls three included SP140 PWM fans with room to power three more. Reduce fan speed when you want keep your system quiet, or increase when you want to push its performance, all from a single 4-pin PWM header on your motherboard.
HIGH-SPEED USB 3.1
GEN-2 TYPE-C PORT
Access high-bandwidth 10Gbit/s via a reversible type-C connector.
MANAGE YOUR STORAGE OPTIONS
Install up to 1x 5.25in, 6x 3.5in and 3x 2.5in drives. A versatile HDD/ODD design includes six modular trays that can be moved to eight mounting locations to give you the exact layout you want.
EASY ACCESSIBILITY
A hinged front panel and tempered glass side panel provide easy tool-free access.
Specifications
| Case Height | 497 |
|---|---|
| Case Length | 549 |
| Case Width | 239 |
| Lighting | None |
| Case Form Factor | MID TOWER |
| Case Motherboard Support | Mini-ITX | MicroATX | ATX | E-ATX |
| Color | WHITE |
| Weight | 14.89 |
| Radiator Compatibility | 120mm, 140mm, 240mm, 280mm, 360mm, 420mm |
| Maximum GPU Length | 370 |
| Maximum CPU Cooler Height | 170 |
| Maximum PSU Length | 225 |
| Lighting Effects | None |
| Corsair Link Enabled | No |
| Compatible Liquid Coolers | H55, H60, H75, H80i, H90, H100i, H105, H110i, H115i, H150i |
| Case Size | NA |
| Case Material | Steel, Tempered Glass |
| Case Dimensions | 549mm x 239mm x 497mm |
| Case Power Supply | ATX |
| Case Expansion Slots | 7 horizontal + 2 vertical |
| Case Drive Bays | (x6) 3.5in (x3) 2.5in |
| Case Window | Tempered Glass |
| Case Warranty | 2 Year |
| Internal 3.5″ Drive Bays | 6 |
| Internal 2.5″ Drive Bays | 3 |
| Case Front IO | (2x) USB 3.0, (1x) USB 3.1 Type C, (1x) Audio in/out |
Corsair CC-9011170-WW carbide series 678C – Tempered Glass , White – with noise damping side/top/front panels + fan-speed controller , support 2x vertical GPU mount , no psu , support 3x radiators upto 360mm , support upto 370mm graphics card ; 1x usb3 Type-C + 2x usb 3.0 + audio in/out – 2x 3.5″ + 2×2.5″ hidden – 2xSP140 PWM fans upto 9 – E-ATX
