Description
PC Build from the Outside In

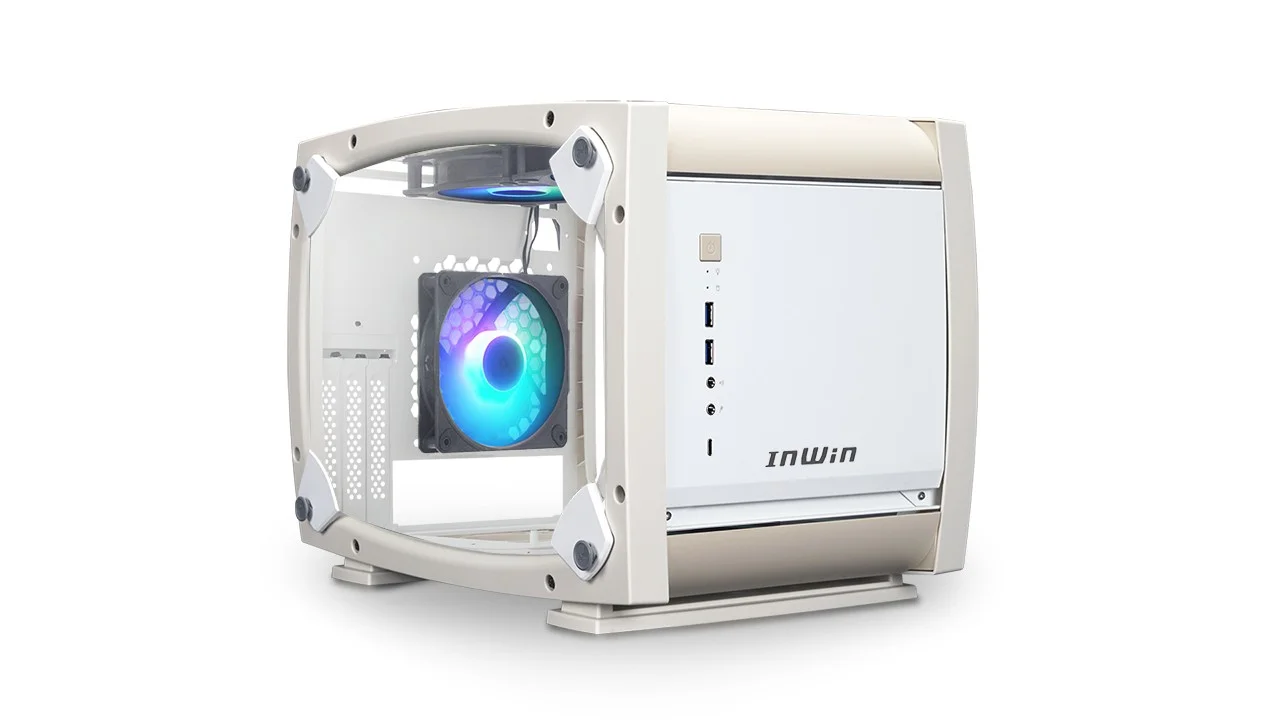

The EXPLORER gaming chassis offers you the chance to build your own PC case! Assemble the modular 10 pieces of EXPLORER to complete the mini tower. Nice DIY project for yourself or build the chassis with friends or family!
Simplifying PC Building
Thanks to the hassle-free design, you can build your own EXPLORER and assemble the PC system with ease.
(Tool-less features include: quick-release side panel, quick-release dust filter and quick release front panel.)
Explore with this Mini Cube!
The small footprint of EXPLORER allows you to place it in any environment without cluttering your work area. Suitable in your room, office, studio or your gaming battlestation!
Spacious Interior

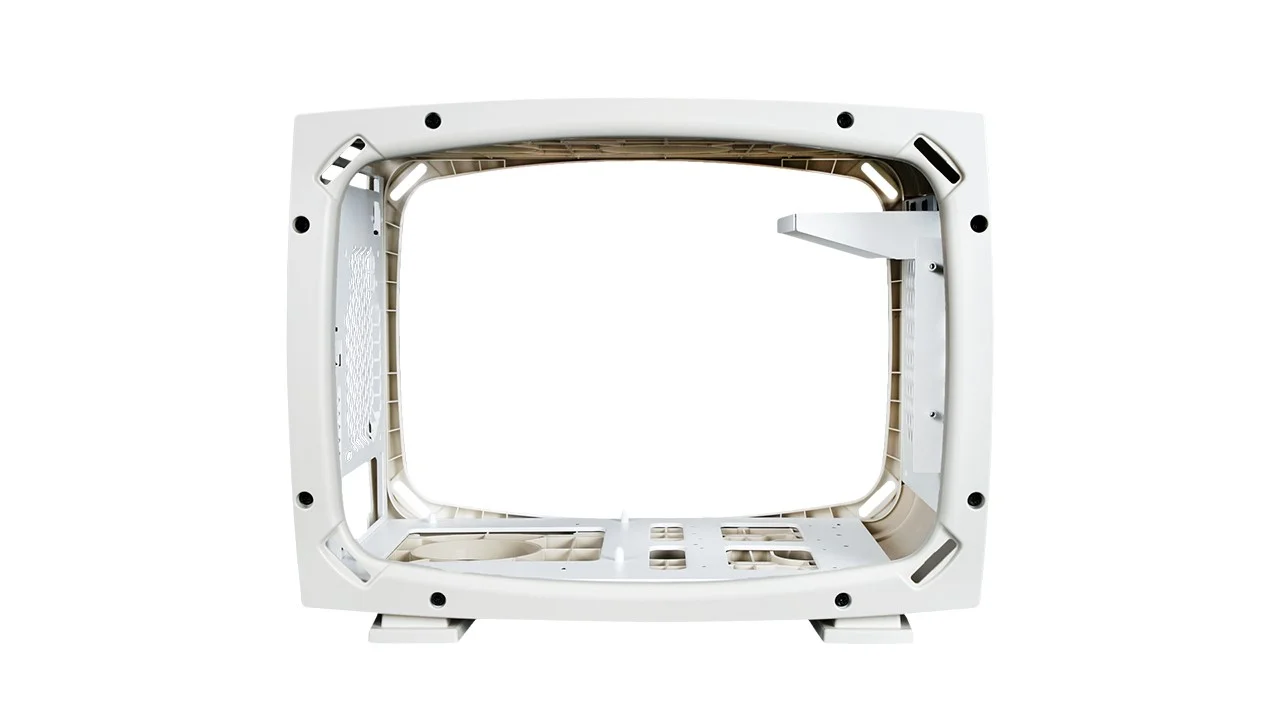

EXPLORER is an ITX-Chassis that’s designed for those who desire a compact, high-performance PC. The specialized motherboard tray is horizontally placed to utilize every corner of the chassis. It’s capable of housing triple-slot GPUs up to 330 mm in length, ATX12V PSUs up to 160 mm in length and 140 mm case fans.
Gen 2 Fast Gen 2 Furious
Built for super speed! USB 3.2 Gen 2×2 Type-C is equipped and ready for data transfer.
Specifications
| Model | EXPLORER |
|---|---|
| Model Number | IW-CS- EXPLORER-BWHI |
| Colors | Bone White, |
| Case Type | Mini-ITX Tower |
| Materials | Tempered Glass, SECC, ABS |
| M/B Compatibility | Mini-ITX |
| Expansion slots | 3 x Vertical PCI-E |
| Maximum Compatibility | VGA Card Length: 330 mm CPU Heatsink Height: 160 mm |
| I/O Ports | 1 x USB 3.2 Gen 2×2 Type-C 2 x USB 3.0 HD Audio |
| Internal Drive Bays | 2 x 2.5″ 1 x 3.5″ |
| Thermal Solution Compatibility | Air Cooling Fans: Top: 2 x 120 / 2 x 140 mm Rear: 1 x 120 / 140 mm Water Cooling Radiator: Top: 1 x 240 mm |
| Power Supply Compatibility | PSII : ATX12V – Length up to 160mm |
| Product Dimensions (H x W x D) |
392 x 285 x 307 mm 15.4 x 11.2 x 12″ |
| Package Dimensions (H x W x D) |
405 x 300 x 225 mm 15.9 x 11.8 x 8.8″ |
| Net Weight | 3.75 kg / 8.26 lbs |
| Gross Weight | 5 kg / 11 lbs |
InWin Explorer Bone White – DiY assembling chassis with 10-piece tooless module , support 1x 3-slot vertical graphics card – with tempered glass side panel , no psu ( SFX or ATX upto 160mm long ) , support upto 330mm long card ; 1x usb3.1 Gen2 type C + 2x front usb3.0 + audio in/out – 2/0x 3.5 + 4/6x 2.5″ – 3x 120mm AL120 ARGB fan with anti-dust filters , support 1x 240mm radiators – E-ATX with 3x expansion cards
