Description
- Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing.
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Axial-tech fans scaled up to deliver 23% more airflow
- Dual Ball Fan Bearings last up to twice as long as conventional designs
- Military-grade Capacitors rated for 20K hours at 105C make the GPU power rail more durable
- Metal Exoskeleton adds structural rigidity and vents to increase heat dissipation
- Auto-Extreme precision automated manufacturing for higher reliability
- GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
Axial-tech Upgrades
Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 23% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.
New Directions
The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 Celsius, referencing a speed curve that balances performance and acoustics for work or play.
3.65-slot Design
A vapor chamber and generously oversized heatsink combo efficiently soak up heat from the GeForce RTX 4080 SUPER GPU so that it can be whisked away by the three Axial-tech fans.
Military-grade Capacitors
A lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature and ripple tolerance to the GPU power rail, arming the card for long-term deployment in challenging conditions.
Compact PCB
Component and trace layouts have been optimized onto a short PCB to reduce power losses and let heat escape through a massive backplate vent.

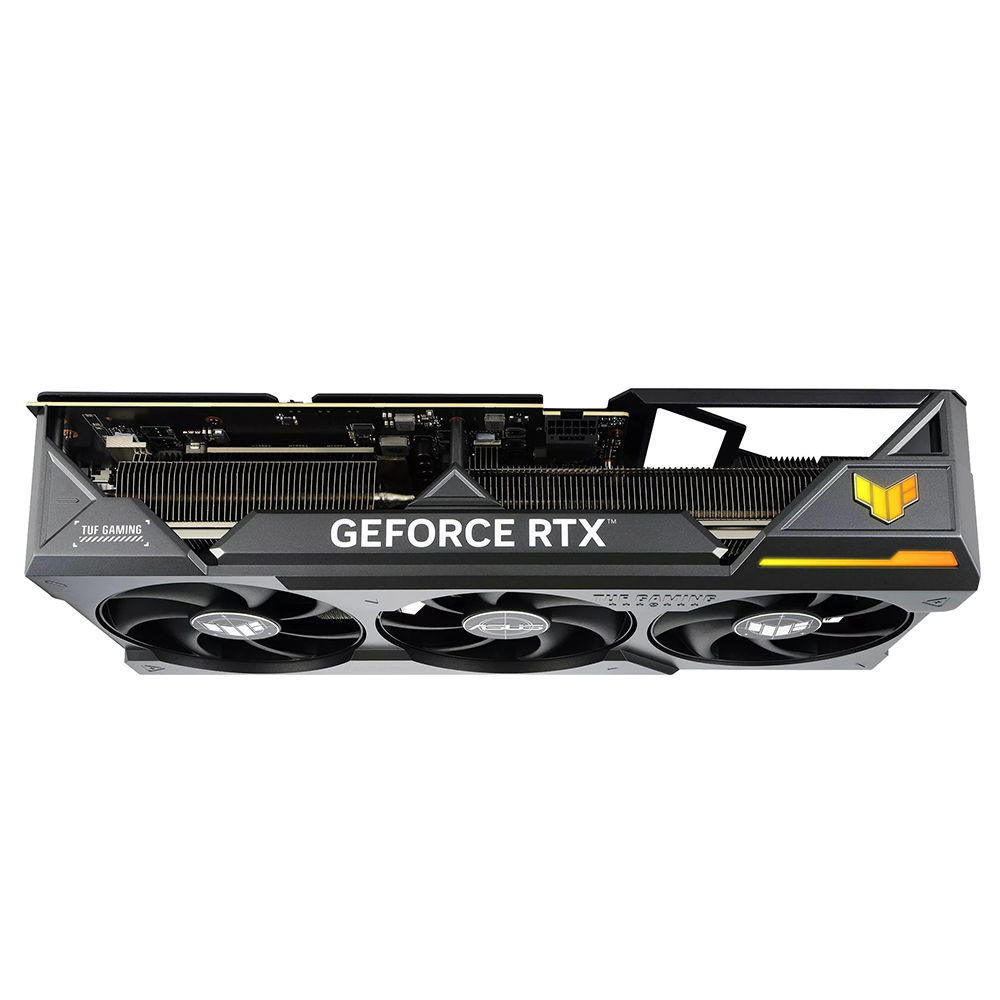

Metal Exoskeleton
A high-quality diecast shroud and aluminum backplate prevent PCB flex and feature large vents to further increase heat dissipation
Auto-Extreme Technology
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
Aura Sync
Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that’s uniquely you.
Specifications
Graphic Engine: NVIDIA® GeForce RTX™ 4080 SUPER
AI Performance: 836
Bus Standard: PCI Express 4.0
OpenGL: OpenGL®4.6
Video Memory: 16GB GDDR6X
Engine Clock: OC mode : 2580 MHz Default mode : 2550 MHz (boost)
CUDA Core: 10240
Memory Speed: 23 Gbps
Memory Interface: 256-bit
Resolution: Digital Max Resolution 7680 x 4320
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support: 4
NVlink/ Crossfire Support: No
Accessories: 1 x Collection Card 1 x Speedsetup Manual 1 x Adapter Cable (1 to 3) 1 x TUF Graphics Card Holder 1 x TUF Velcro Hook & Loop 1 x Thank you Card 1 x TUF Gaming Certificate
Software: ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions: 348.2 x 150 x 72.6 mm
Recommended PSU: 850W
Power Connectors: 1 x 16-pin
Slot: 3.65 slot
AURA SYNC: ARGB
PCI Express 4.0; 16GB GDDR6X; OC mode: 2580 MHz; Default mode:2550 MHz; 4x display; 2xHDMI; 3xDP; 348.2 x 150 x 72.6 mm; 850W.
