Description
FEATURES
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX™ 5070 Ti
- Integrated with 16GB GDDR7 256bit memory interface
- WINDFORCE cooling system
- Hawk fan
- Server-grade thermal conductive gel
- RGB Lighting
- Dual BIOS (Performance / Silent)
- NVIDIA SFF-ready
- Reinforced structure
- Versatile VGA holder

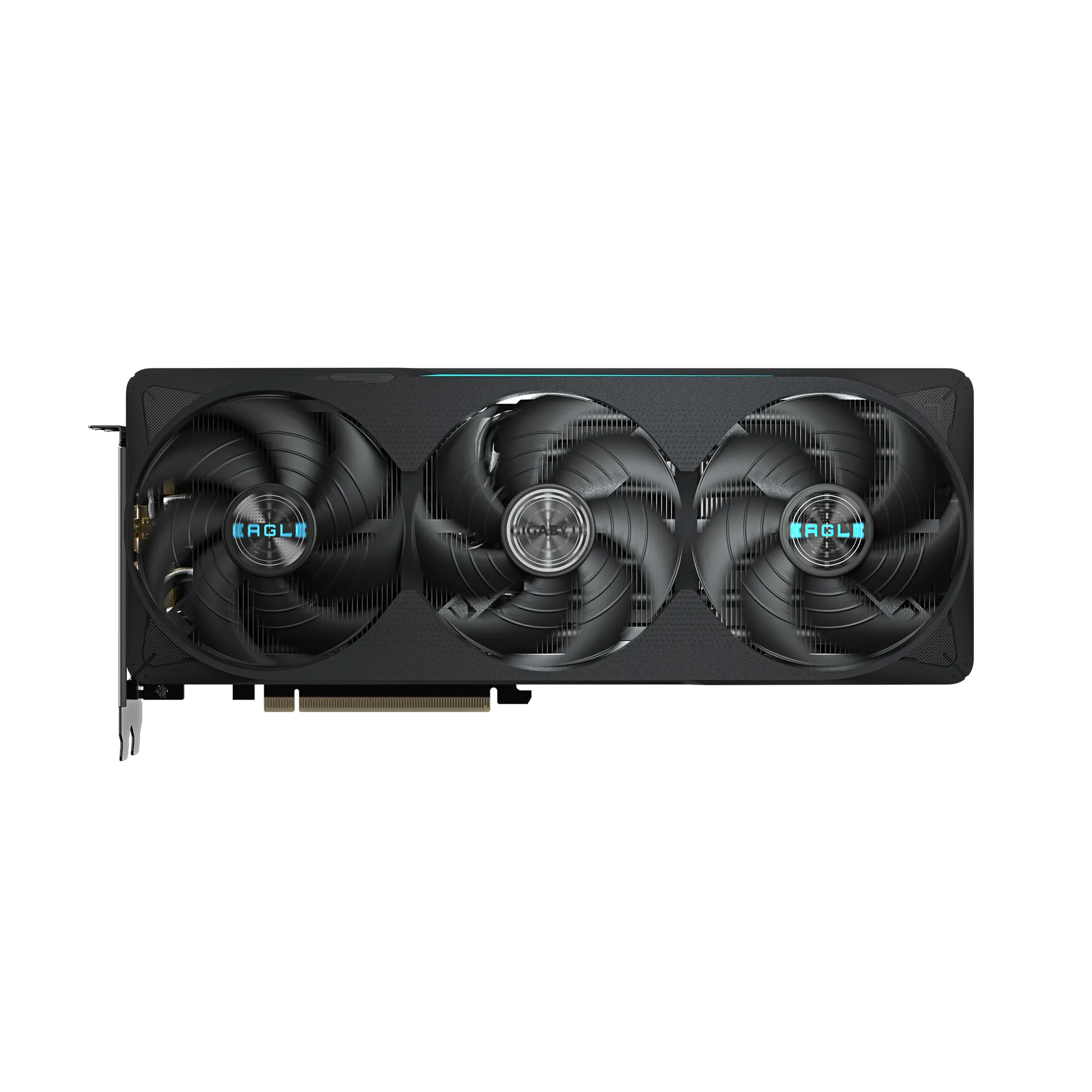

WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.
ASTONISHING EXTERIOR DESIGN
The design inspiration for the EAGLE series stems from the fusion of aerospace battleships and sci-fi elements. Its unique curved contours outline a streamlined appearance, complemented by segmented lines resembling disassembled deck components, evoking the intricate structure of a spaceship. This design infuses the overall aesthetic with a rich cosmic technology vibe, showcasing the futuristic aesthetics and craftsmanship in every detail.
NVIDIA SFF-READY
Complying with NVIDIA’s small form factor specification, our graphics cards pack powerful performance into a small form factor, achieving the perfect balance of size and power.
-
Graphics Processing: GeForce RTX™ 5070 Ti
-
Core Clock: 2542 MHz (Reference: 2452 MHz)
-
CUDA® Cores: 8960
-
Memory Clock: 28 Gbps
-
Memory Size: 16GB
-
Memory Type: GDDR7
-
Memory Bus: 256 bit
-
Card Bus: PCI-E 5.0
-
Digital max resolution: 7680 x 4320
-
Multi-view: 4
-
Card size: L=304 W=126 H=50 mm
-
PCB Form: ATX
-
DirectX: DirectX 12 API
-
OpenGL: OpenGL 4.6
-
Recommended PSU: 750W
-
Power Connectors: 16 pin*1
-
Output: DisplayPort 2.1b x3, HDMI 2.1b x1
-
Accessories1. VGA manual
2. 1x 12V-2×6 to 2x PCIe 8pin adapter
3. Versatile VGA holder
4. Versatile VGA holder manual
