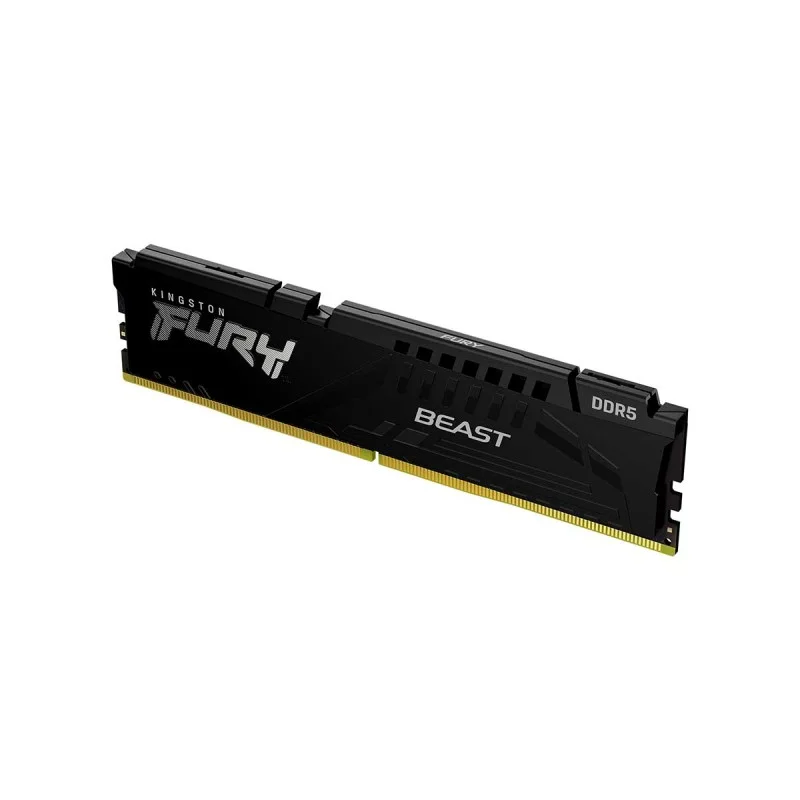

Kingston Fury Beast 8GB 5600MT/s CL40

Description

Kingston FURY KF556C40BB-8 is a 1G x 64-bit (8GB) DDR5-5600 CL40 SDRAM (Synchronous DRAM) 1Rx16, memory module, based on four 1G x 16-bit FBGA components per module. The module supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-5600 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Specifications

• Power Supply VDD: 1.1V Typical
• VDDQ: 1.1V Typical
• VPP: 1.8V Typical
• VDDSPD: 1.8V to 2.0V
• On-Die ECC
• Height 1.37” (34.9mm), w/heatsink

Kingston KF556C40BB-8 – 8Gb , Ddr5-5600 (PC5-44800) fury Beast with heatsink , CL40 – 288pin single rank , 38.4Gb/sec memory bandwidth , built-in ECC , 1.25V with built-in Power Management iC
