Description

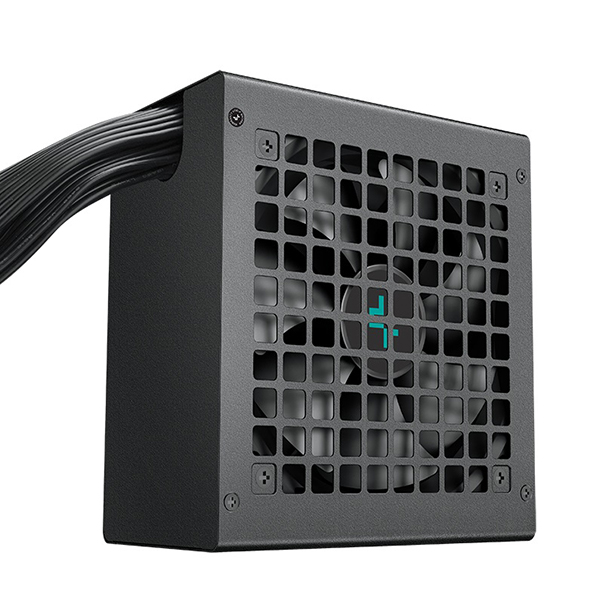

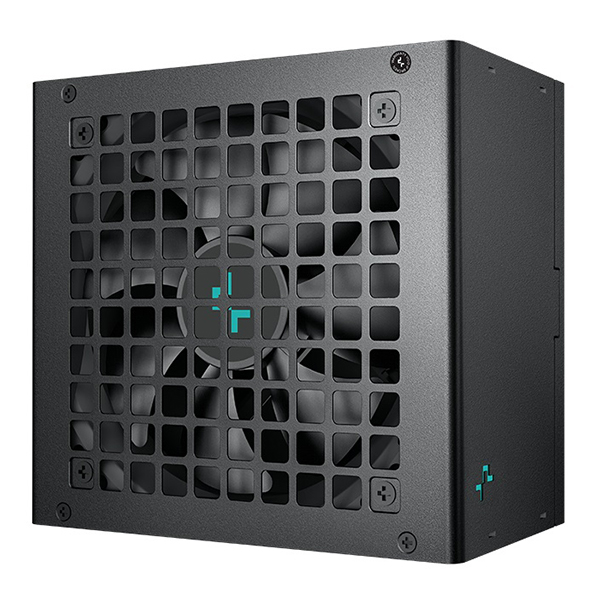

DeepCool PL800D 800W 80+ Bronze ATX 12V V3.0 Direct Cable Power Supply WIth 1X 12VHPWR Cable And Active PFC And 1X 120mm Hydro Bearing Fan – Black Colour
The PL800D updates DeepCool non-modular PSUs with a 12V-2×6 cable and brings them into compliance with INTEL’s ATX3.1 standard. These units are 80 PLUS Bronze-verified, come with a 120mm hydro-bearing fan, and will provide stable power for years to come.
Specifications
| Type | ATX12V V3.1 | |
| Product Dimensions | 150×140×86mm (W x L x H) | |
| Efficiency certification | 80Plus Bronze/Cybenetics Silver/PPLP Silver/CQC II 级 | |
| Fan Size | 120mm | |
| Fan Bearing | HYB(Hydro Bearing) | |
| Topology | Active PFC+DC to DC | |
| Capacitors | Chinese Electrolytic Capacitors | |
| Power Good Signal | 100-150ms | |
| Hold Up Time | 16ms | |
| Efficiency | ≥85% Under Typical Load(50% Loading) | |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO | |
| Operation Temperature | 0 – 40℃ | |
| Regulatory | CE/FCC/CCC/RCM/EAC/ CAN ICES-003(B)/NMB-003(B) /TUV-RH |
|
| Erp Regulation | ErP 2014 | |
| Environment Protection | WEEE/中国 RoHS/Triman/P65 | |
| MTBF | 100,000 Hours | |
| Cables | ATX 24 Pin | x1 |
| EPS 4+4 Pin | x2 | |
| PCI-E(6+2)Pin x1 | x1 | |
| PCI-E(6+2)Pin x2 | x1 | |
| 12V-2×6(16Pin) | x1 | |
| SATA x 4 | x2 | |
