Epson EB-L530U Projector

SKU: EB-L530U

Available Online

R45,049

Available Online

Pricing is already subject to a 3% discount which is only applicable to EFT payments.

🚚 Dispatch lead time 2-3 business days.

SKU: EB-L530U Category: Projectors

Description

Epson Flexible Laser Display Solution

5,200-lumen brightness Crisp images and bright colours, even in well-lit rooms
WUXGA resolution Sharp Full HD images for excellent clarity
Futureproofed connectivity options 4K input support, HDMI, HDBaseT, integrated Wi-Fi and screen mirroring
Easy, flexible installation Lightweight and compact design with wide lens shift
Support social distancing Scalable display size of up to 500 inches

This laser projector has been designed to deliver large-scale, vivid displays. With the EB-L530U, you’ll benefit from a lower-cost, high brightness laser display solution that makes lamp replacements and clunky, inflexible flat panels problems of the past. As the market leader in 3LCD technology, Epson continues to improve its high brightness laser projectors with even smaller and more compact display solutions. The EB-L530U delivers effective, practical and creative display applications across a number of different industries.

Specifications

Technology
Projection System	3LCD Technology, RGB liquid crystal shutter
LCD Panel	0.67 inch with C2 Fine
Color Light Output	5,200 Lumen – 3,640 Lumen (Economy), in accordance with IDMS 15.4
White Light Output	5,200 Lumen – 3,640 Lumen (Economy), in accordance with ISO 21118:2020
Resolution	WUXGA
Resolution Enhancement	Full HD
Aspect Ratio	16:10
On-Screen Pixel Count	2,304,000
Contrast Ratio	Over 5,000,000:1
Light Source	Laser
Laser Light Source	20,000 hours durability (High), 30,000 hours durability (Eco)
Keystone Correction	Manual vertical: ±30°, Manual horizontal: ±30°
Colour Video Processing	10 Bits
Colour Reproduction	Up to 1.07 billion colours
Optical
Throw Ratio	1.35 – 2.20:1
Zoom	Manual, Factor: 1 – 1.6
Projection Lens Zoom Ratio	1.35 – 2.2:1
Lens	Optical
Lens Shift	Manual – Vertical ±50%, Horizontal ±20%
Screen Size	50 inches – 500 inches
Projection Distance Wide	1.4 m – 14.8 m
Projection Distance Tele	2.4 m – 23.8 m
Projection Distance Wide/Tele	1.44 m – 23.84 m
Projection Lens F Number	1.5 – 1.7
Projection Lens Focal Length	20 mm – 31.8 mm
Projection Lens Focus	Manual
Connectivity

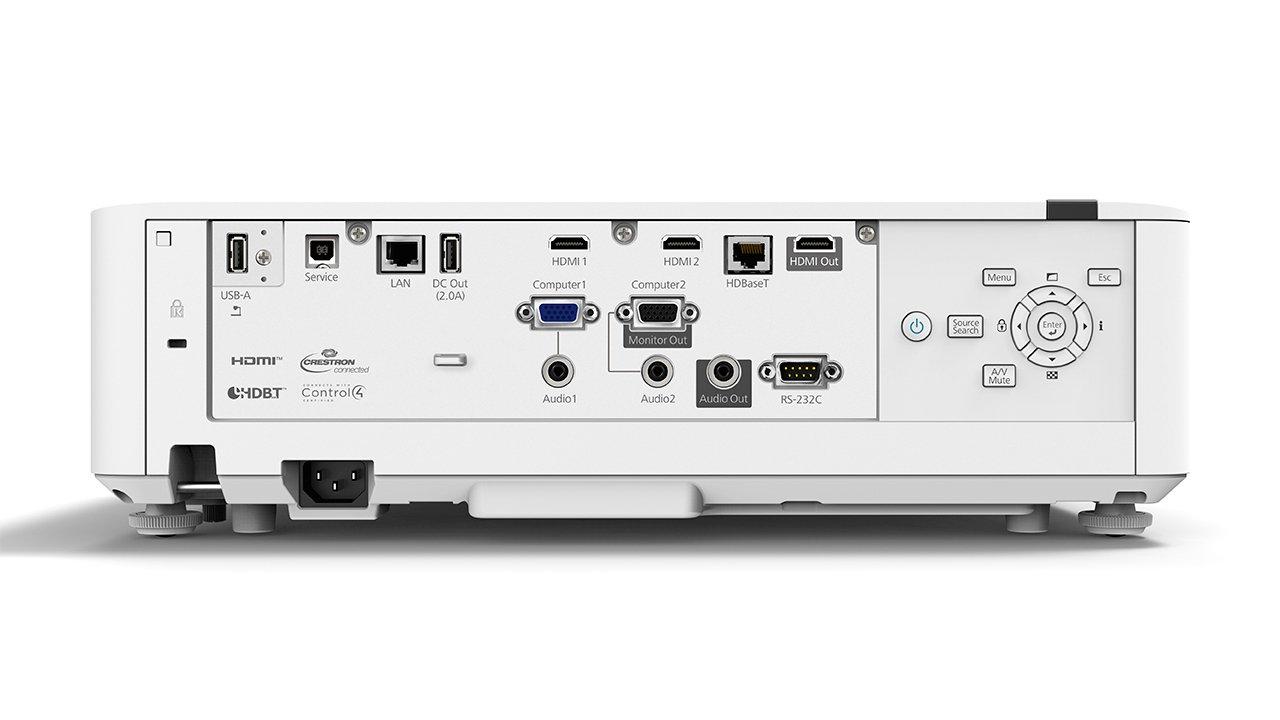

Interfaces	USB 2.0-A, USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, Wireless LAN a/n (5GHz), VGA In (2x), VGA Out, HDMI Out, HDBaseT, Miracast, Jack Plug Out, Jack Plug In (2x), HDMI (HDCP 2.3) (2x), USB 2 Type-A Playback
Epson iProjection App	Ad-Hoc / Infrastructure
Network Protocol	HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
Advanced Features
Security	Kensington Lock, Control Panel Lock, Security Cable Hole, Wireless LAN Unit Lock, Wireless LAN Security, Password Protection
2D Colour Modes	Dynamic, Cinema, Presentation, sRGB, DICOM SIM
Other Features	21:9 Aspect Ratio Support, A/V Mute, Arc Correction, Auto Power On, Auto Source Search, Built-in Speaker, CEC Compatible, Customizable User Logo, Daisy Chain Multi-Projection, Digital Zoom, Direct Power On/Off, Document Camera Compatible, Edge Blending, Home Screen, Horizontal and Vertical Keystone Correction, JPEG Viewer, Long Light Source Life, PC Free, Power On Button, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen Function, Super Resolution, Ultra-Wide Display (16:6), Volume Control, Web Control, Web Remote, Wireless LAN Capable, iProjection App
Video Color Modes	Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection
Projector Control	Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
General
Power Consumption	234 Watt (Normal On-Mode), 164 Watt (Eco On-Mode), 293 Watt (Normal Peak-Mode), 223 Watt (Eco Peak-Mode), 0.3 Watt (Energy Saving Standby)
Supply Voltage	AC 100 V – 240 V, 50 Hz – 60 Hz
Product Dimensions	440 x 339 x 136 mm (Width x Depth x Height)
Product Weight	8.2 kg
Noise Level	Normal: 31 dB (A) – Economy: 23 dB (A)
Supported Temperature	Storage: -10°C – 60°C
Supported Humidity	Operation: 20% – 80%, Storage: 10% – 90%
Options	Connection and Control Box, Document Camera, External Speaker, HDBaseT Transmitter, MB22 Ceiling Mount, Wireless LAN Unit
Loudspeaker	10 Watt
Room Type / Application	Large Meeting Room / Boardroom, Auditorium, Meeting Room / Classroom, Projection Mapping, Signage / Retail, Visitor Attraction
Positioning	Ceiling Mounted, Desktop
Colour	White
TCO Certified	Yes
Other
Warranty	36 months Carry-in
