Description

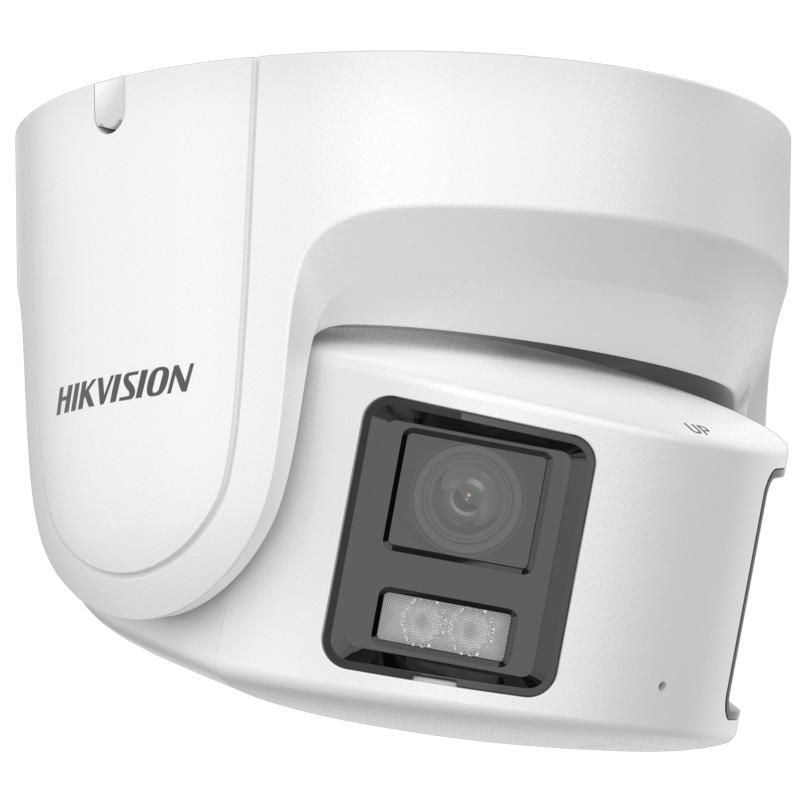

Panoramic ColorVu Fixed Turret Network Camera

• High quality imaging with 8 MP resolution
• One image that presents all the scenes covered by the camera
• 24/7 colorful imaging
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 130 dB WDR technology
• Focus on human and vehicle classification based on deep learning
• Active strobe light and audio alarm to warn intruders off
• Water and dust resistant (IP67)

Specifications

• Image Sensor: 2 × 1/1.8″ Progressive Scan CMOS
• Max. Resolution: 5120 × 1440
• Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Angle Adjustment: Pan: 0° to 30°,tilt: -75° to 75°

Lens

• Lens Type: Fixed focal lens, dual lens: 4 mm
• Focal Length & FOV: 4 mm, horizontal FOV 180° ± 10°, vertical FOV 44°
• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field: 3.6 m to ∞

Illuminator

• Supplement Light Type: White Light
• Supplement Light Range: Up to 40 m
• Smart Supplement Light: Yes

Video

• Main Stream:

  When WDR is On:

  50 Hz: 12.5 fps (5120 × 1440)

  60 Hz: 15 fps (5120 × 1440)

  When WDR is Off:

  50 Hz: 20 fps (5120 × 1440)

  60 Hz: 20 fps (5120 × 1440)

• Sub-Stream:

  When WDR is On:

  50 Hz: 12.5 fps (1920 × 536, 960 × 272)

  60 Hz: 15 fps (1920 × 536, 960 × 272)

  When WDR is Off:

  50 Hz: 20 fps (1920 × 536, 960 × 272)

  60 Hz: 20 fps (1920 × 536, 960 × 272)

• Video Compression:

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile,Main Profile,High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR,VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed region for main stream

Audio

• Audio Type: Mono sound
• Audio Compression:  G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• User/Host:

  Up to 32 users

  3 user levels: administrator, operator, and user

• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
• Network Storage:

  NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),NVR,

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• Client: iVMS-4200,Hik-Connect,Hik-Central
• Web Browser:

  Plug-in required live view: IE 10, IE 11 ,

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


• Image Parameters Switch: Yes
• Image Settings: saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night Switch: Day,Night,Auto,Schedule
• Wide Dynamic Range (WDR): 130 dB
• SNR: ≥ 52 dB
• Image Enhancement: BLC,HLC,3D DNR
• Privacy Mask: 8 rectangular privacy masks

Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone: Yes
• Built-in Speaker: Max. power consumption: 1.2 W, max. sound pressure: 10 cm: 95 dB
• Audio:

  1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

  1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarm: 1 input, 1 output (max. 24 VDC, 1 A)
• Reset Key: Yes

Event

• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),alarm input and output,flashing alarm light output, audible alarm output, exception
• Smart Event: Scene change detection,audio exception detection
• Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing

Deep Learning Function

Perimeter Protection: Line crossing, intrusion, region entrance, region exiting. Support alarm triggering by specified target types (human and vehicle)

General

• Power:

  12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug,

  PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W

• Material: Base: metal, cover: metal
• Dimension: Ø155 mm × 155.7 mm (Ø6.1 × 6.1\”)”
• Package Dimension: 230 mm × 230 mm × 230 mm (9″ × 9″ × 9″)
• Weight: Approx. 1110 g (2.4 lb.)
• With Package Weight: Approx. 1900 g (4.2 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Anti-banding, heartbeat, password reset via email, password protection, one-key reset
