Description

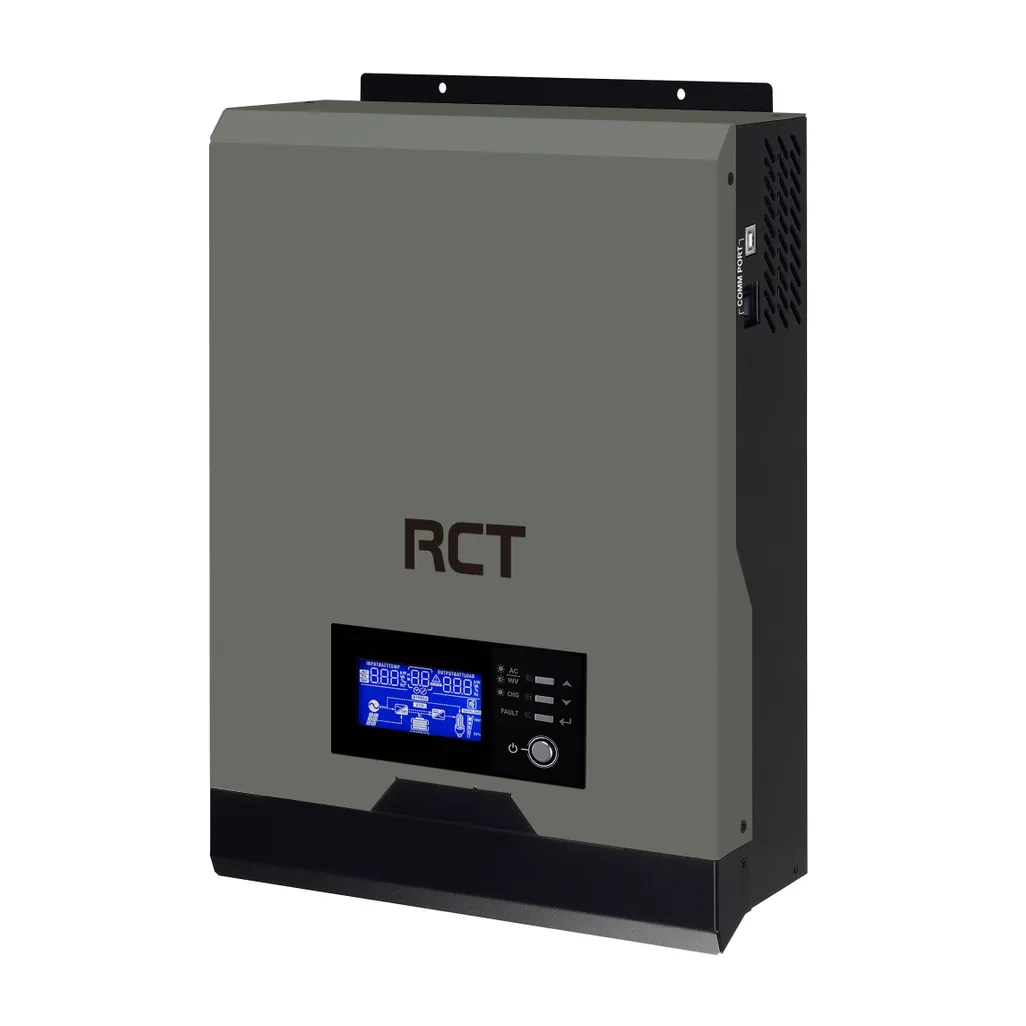

RCT AXPERT VM 2000VA

Features

– Pure sine wave solar inverter
– Output power factor 1
– Selectable high power charging current
– Wide DC input range
– Selectable input voltage range for home appliances and personal computers
– Configurable AC/Solar input priority via LCD setting
– Compatible to AC mains or generator power
– Auto restart while AC is recovering
– Overload and short circuit protection
– Smart battery charger design for optimized battery performance
– Cold start function

Specifications

Input

VOLTAGE: 230 VAC
SELECTABLE VOLTAGE RANGE: 170-280 VAC (For Personal Computers),
90-280 VAC (Home Appliances) FREQUENCY RANGE: 55 Hz / 60 Hz (Auto Sensing)

Output

AC VOLTAGE REGULATION (BATT. MODE): 230 VAC ± 5%
SURGE POWER: 4000 VA
EFFICIENCY (PEAK): 90% ~ 93%
TRANSFER TIME: 10ms (For Personal Computers), 20ms (For Home Appliances)
WAVEFORM: Pure sine wave

Battery

BATTERY VOLTAGE: 24 VDC
FLOATING CHARGE VOLTAGE: 27 VDC
OVERCHARGE PROTECTION: 31 VDC

Solar Charger & AC Charger

SOLAR CHARGER TYPE: MPPT
MAXIMUM PV ARRAY OPEN CIRCUIT VOLTAGE: 102 VDC
MAXIMUM PV ARRAY POWER: 1000 W
MPPT RANGE @ OPERATING VOLTAGE: 30 ~ 80 VDC
MAXIMUM SOLAR CHARGE CURRENT: 40 A
MAXIMUM AC CHARGE CURRENT: 25 A
MAXIMUM CHARGE CURRENT: 60 A
