Description
PRO X870-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
SPECIFICATIONS

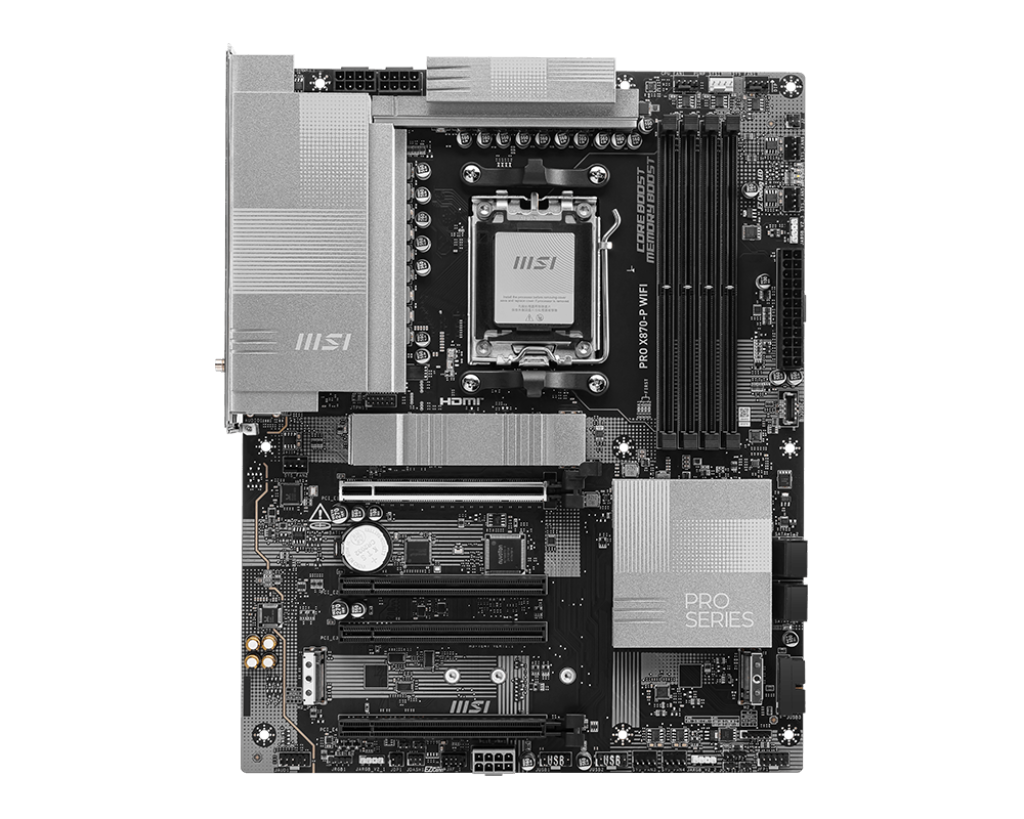

Model Name PRO X870-P WIFI
CPU Support Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop
Processors
CPU Socket Socket AM5
Chipset AMD X870 Chipset
Expansion Slots 1x PCIe 5.0 x16 slot
1x PCIe 4.0 x16 slot
2x PCIe 3.0 x1 slots
Display Interface 1 x USB4 port supports USB Type-C display output,
Support 4K@60Hz as specified in HDMI™ 2.1 – Requires
Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5 – 8200+ MT/s (OC)
Storage 1 x M.2 Gen5 x4 128Gbps slot,
1 x M.2 Gen4 x4 64Gbps slot,
1 x M.2 Gen4 x2 32Gbps slot,
4 x SATA 6Gbps ports

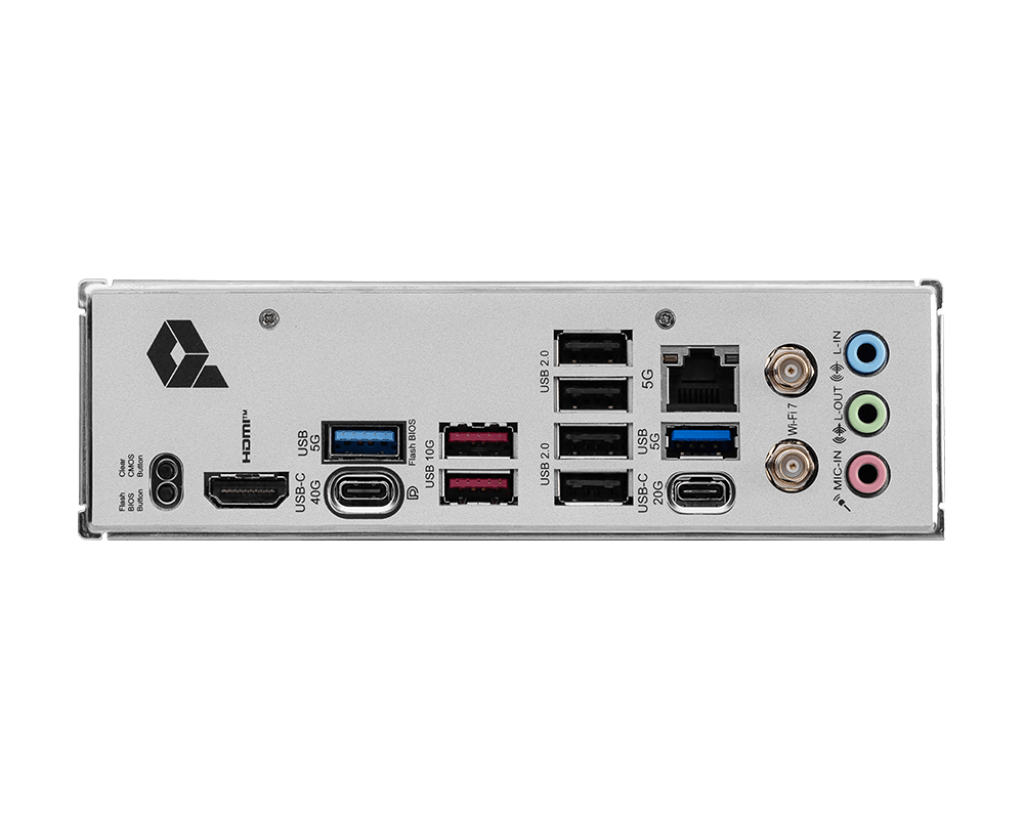

USB ports 1 x USB 40Gbps (1 Type-C),
1 x USB 20Gbps (1 Type-C),
3 x USB 10Gbps (2 Type-A + 1 Type-C),
4 x USB 5Gbps (4 Type-A)
8 x USB 2.0
LAN Realtek® 8126 5G LAN
WiFi / BT Wi-Fi 7 Solution, Bluetooth 5.4
Audio 8-Channel (7.1) HD Audio with Audio Boost
