ASUS ExpertWiFi EBM68 AX7800 Tri-Band 2 Pack

Description

The ASUS ExpertWiFi EBM68 2-pack (90IG07V0-MO3A40) is a tri-band WiFi 6 mesh system built for small businesses. Two units work together to cover larger offices, shops or guest houses with one network, and the system can act as the main router, an access point, or extend through ASUS AiMesh.

Its business features include Self-Defined Networks for employees, guest portal, guest, IoT, scheduled and VPN networks, separated by VLANs, plus remote management through the ASUS ExpertWiFi app. Each unit has a 2.5G WAN port, three Gigabit LAN ports and a USB 3.2 port.

Key features

• Tri-band WiFi 6, AX7800 (574 + 2,402 + 4,804 Mbps)
• Self-Defined Networks: employee, guest portal, guest, IoT, scheduled, VPN
• VLAN separation and remote management
• AiMesh router or node mode, plus access point mode
• 1.7GHz quad-core processor, 1GB RAM

Specifications

• Part number: 90IG07V0-MO3A40
• Pack: 2 units
• WiFi standard: 802.11ax (WiFi 6), tri-band 2.4GHz / 5GHz-1 / 5GHz-2
• Antennas: 6 internal; 2×2, 2×2, 4×4

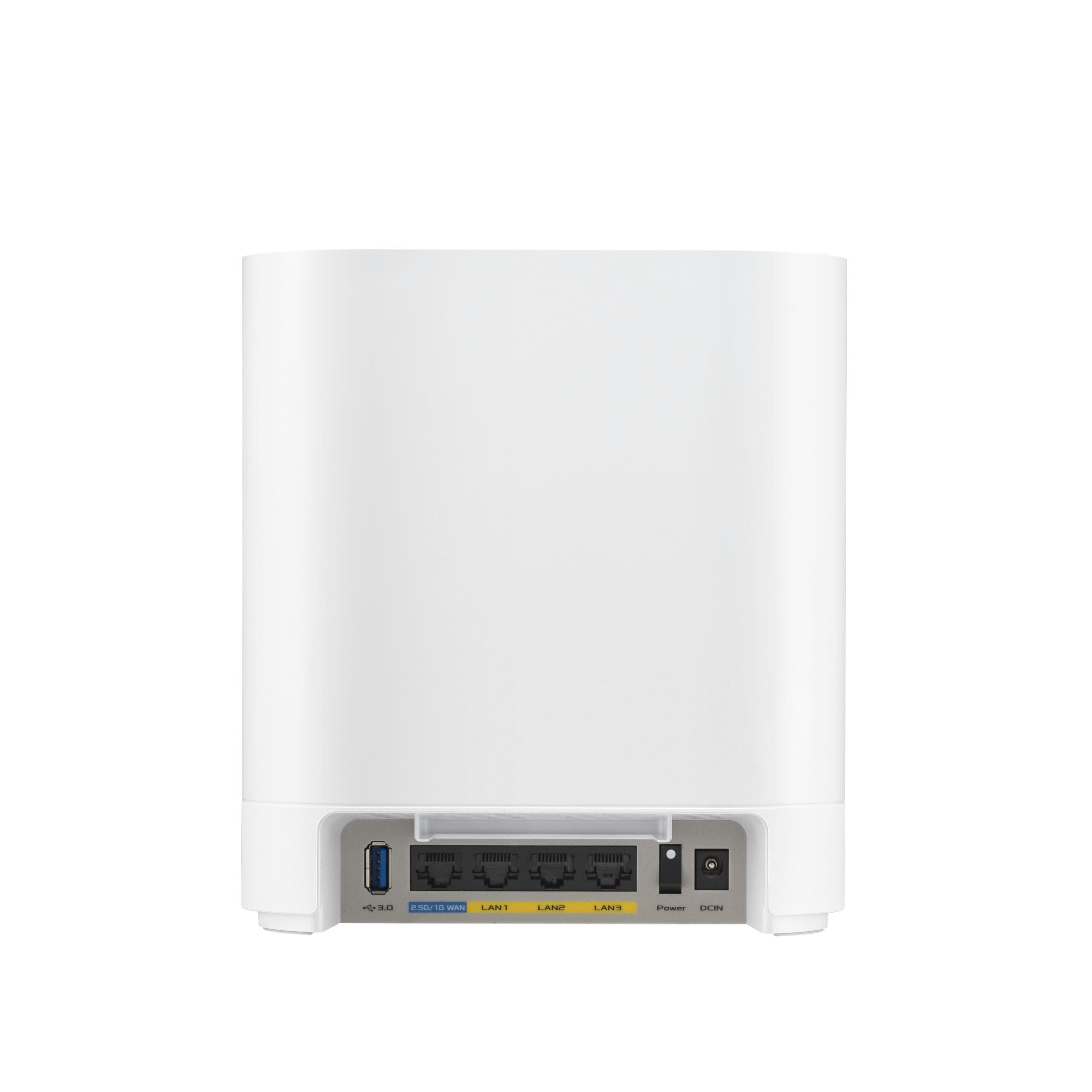

• Ports per unit: 1 x 2.5G WAN, 3 x Gigabit LAN, 1 x USB 3.2 Gen 1
• Power: 12V 3A adapter
• Dimensions: 167 x 77 x 186 mm
• Weight: 808 g per unit

In the box

• ExpertWiFi EBM68 unit (x2 in this pack)
• RJ-45 cable
• Power adapter
• Wall-mount kit
• Quick start guide and warranty card
