Description

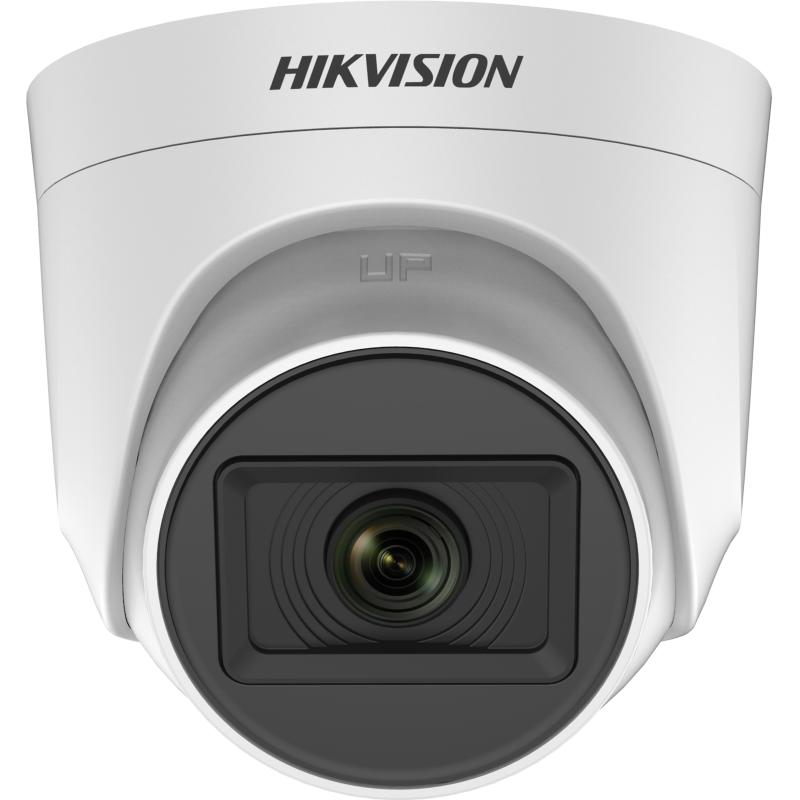

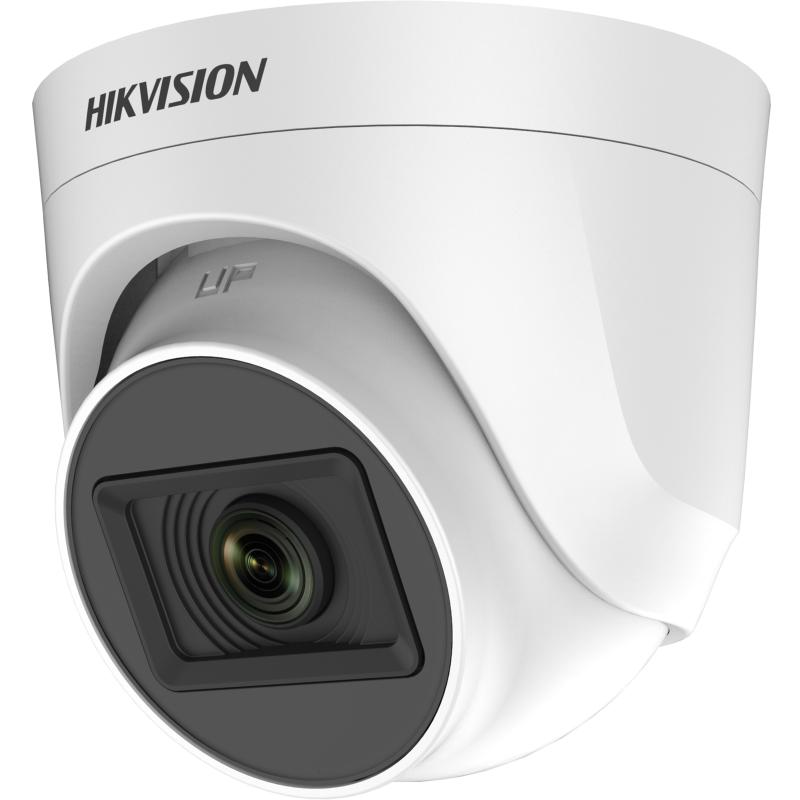

Indoor Fixed Turret Camera

• Image Sensor: 2 MP CMOS
• Signal System: PAL/NTSC
• Max. Resolution: 1920 (H) × 1080 (V)
• Min. Illumination: 0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & Night: IR Cut Filter
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Lens

• Lens Type: 3.6 mm Fixed Lens
• Focal Length & FOV: 3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0°
• Lens Mount: M12

Illuminator

Supplement Light Range: Up to 20 m


• Frame Rate:

  TVI: 1080p@25fps/30fps

  AHD: 1080p@25fps/30fps

  CVI: 1080p@25fps/30fps

  CVBS: PAL/NTSC

• Wide Dynamic Range (WDR): Digital WDR
• Image Parameters Switch: STD/HIGH-SAT
• Day/Night Mode: Auto/Color/BW (Black and White)
• White Balance: Auto
• Image Enhancement: DWDR, BLC, Global
• Noise Reduction: 2D DNR
• Image Settings: Brightness, Mirror, Smart IR, Sharpness, AGC

Interface

Video Output: Switchable TVI/AHD/CVI/CVBS

General

• Language: English
• Operating Condition: -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
• Material: Plastic
• Communication: HIKVISION-C
• Dimension: Φ 84.6 mm × 78.9 mm (Φ 3.33″ × 3.11″)
• Weight: Approx. 195g (0.43 lb.)
• Power: 12 VDC ± 25%, Max. 3.3 W
