Description

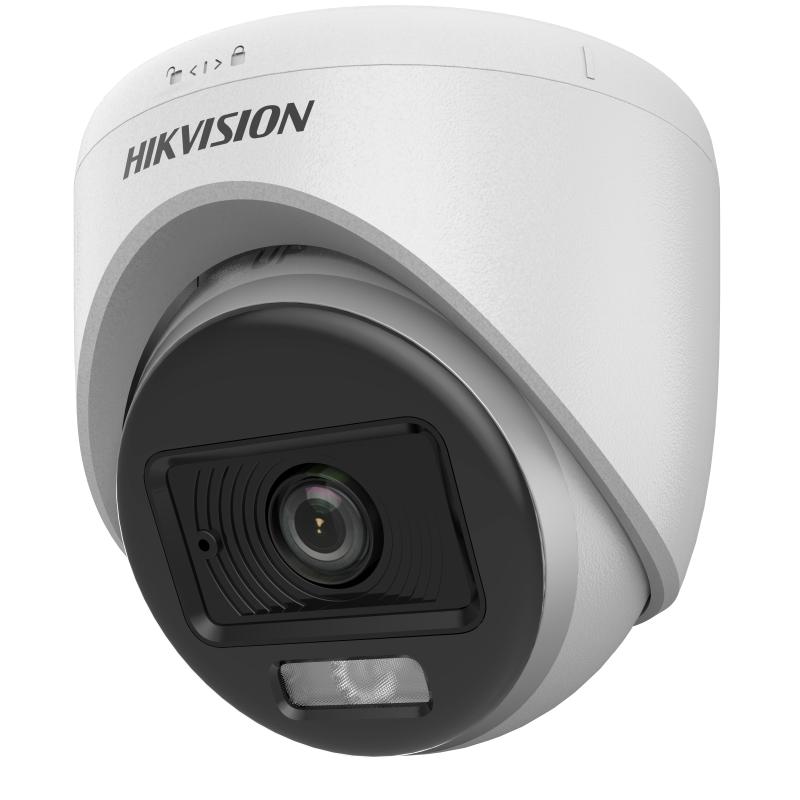

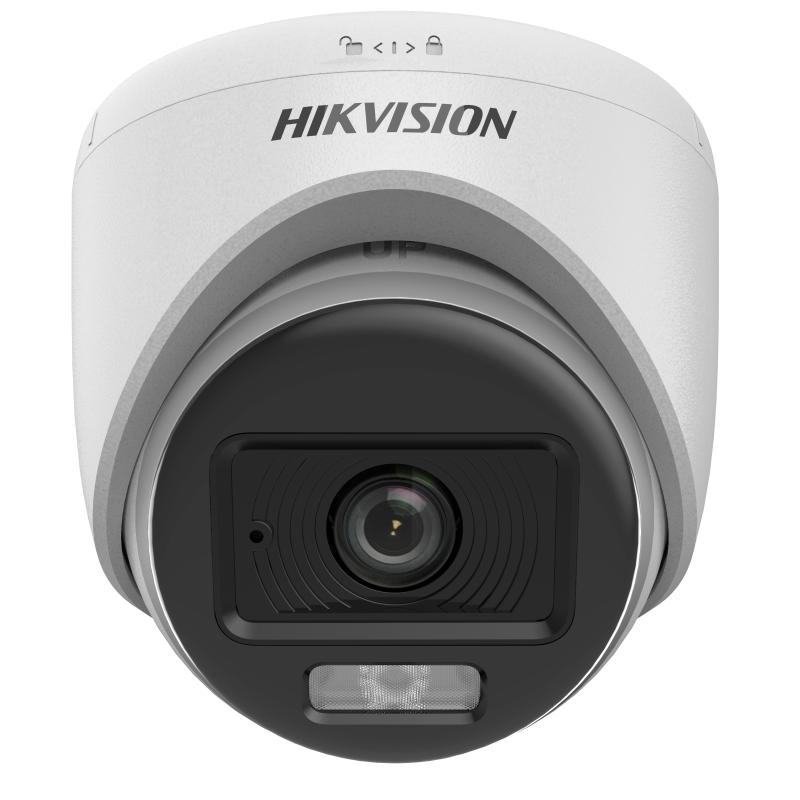

ColorVu Smart hybrid light Indoor Fixed Turret Analogue Camera

• Image Sensor: 3K CMOS
• Signal System: PAL/NTSC
• Resolution: 2960 (H) × 1665 (V)
• Frame Rate:

  TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps

  AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps

  CVI: 4 MP @25 fps/30 fps

  CVBS: PAL/NTSC

• Min. Illumination: 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
• Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Lens: 2.8 mm fixed focal lens
• Field of View: 2.8 mm, horizontal FOV: 105°, vertical FOV: 60°, diagonal FOV: 143°
• Lens Mount: M12
• Light Alarm: Solid Light Alarm (White Light)
• Day & Night: ICR
• WDR (Wide Dynamic Range): Digital WDR
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Microphone

• Pickup Distance: In a radius of up to 5 m
• Amount: 1

Illuminator

• Supplement Light Type: Smart, IR, White Light
• Supplement Light Range: IR: Up to 20 m,White Light: Up to 20 m


• White Light: Auto/Off
• Image Mode: STD/HIGH-SAT/HIGHLIGHT
• AGC: Yes
• Day/Night Mode: Auto/Color
• White Balance: Auto/Outdoor/Global/Manual
• AE (Auto Exposure) Mode: HLS;DWDR;BLC;HLC;Global
• Noise Reduction: 2D DNR
• Language: English
• Function: Smart IR;Brightness;Sharpness;AGC;Anti-Banding

Interface

• Video Output: Switchable TVI/AHD/CVI/CVBS
• Audio In: Built-in mic

General

• Power: 12 VDC ± 25%, max.3.9 W,*You are recommended to use one power adapter to supply the power for one camera.
• Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)
• Material: Plastic
• Communication: HIKVISION-C
• Dimension: Ø85.02 mm × 81.25 mm (Ø3.35″ × 3.2″)
• Weight: Approx. 240 g (0.53 lb.)
