Description

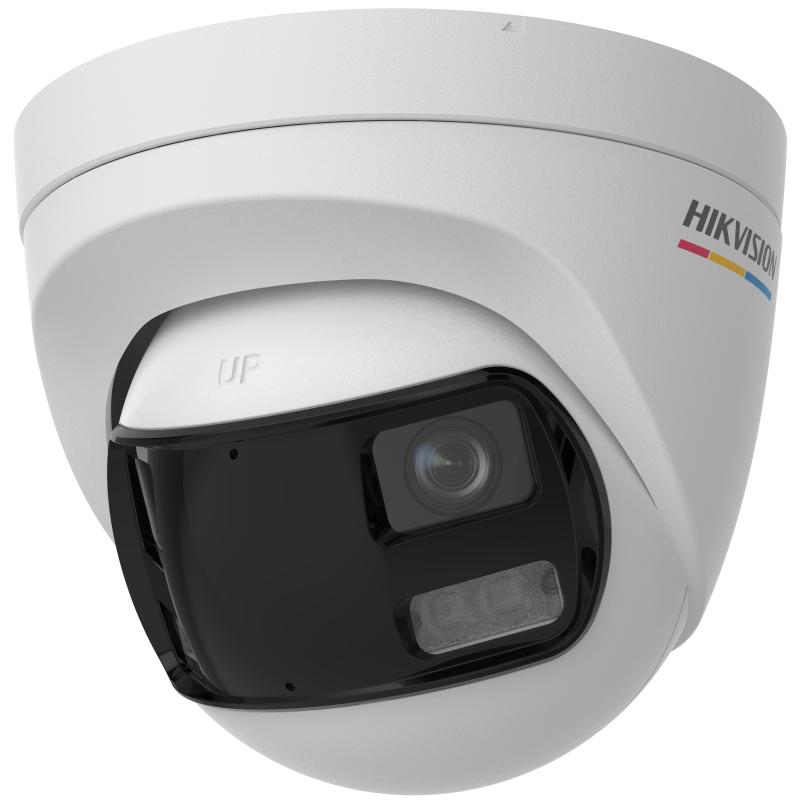

ColorVu Dual-Lens Fixed Turret Camera

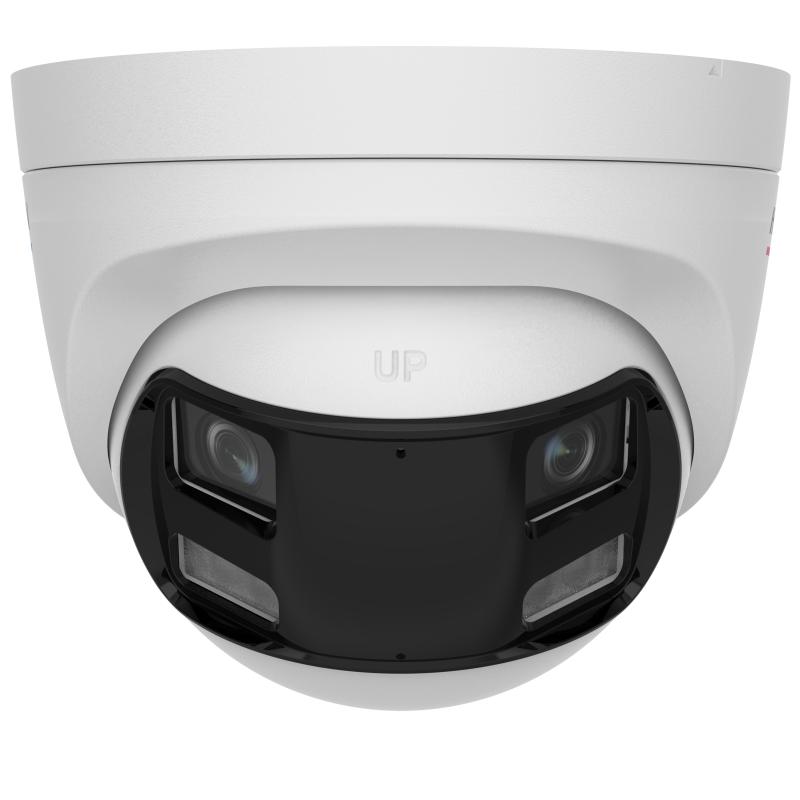

• Dual-lens design, built-in stitching algorithm, presenting a 180-degree image
• High quality imaging with 3K, 3328 × 1504 resolution
• 24/7 color imaging with F1.0 aperture
• Smart-Hybrid light, optimize your security with flexible lighting options
• Clear imaging against strong back light due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• Up to 40 m white light and 40 m IR distance for bright night imaging
• Built-in mic, high quality audio with audio over coaxial cable
• Water and dust resistant (IP67)

Specifications

Camera

• Max. Resolution: 3328 (H) × 1504 (V)
• Shutter Time: 1/20 s to 1/50,000 s
• Image Sensor: 3K CMOS
• Slow Shutter: Max. 16 times
• Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°

Lens

• Lens Type: 2.8 mm fixed focal lens
• Focal Length & FOV: 2.8 mm, horizontal FOV: 180°, vertical FOV: 75°
• Lens Mount: M12

DORI

DORI: 2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m

Illuminator

• Supplement Light Range: IR: Up to 40 m,White Light: Up to 40 m
• Smart Supplement Light: Yes


• Frame Rate: 3K @20 dual
• Privacy Mask: 4 programmable privacy masks
• Wide Dynamic Range (WDR): ≥130 dB
• Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
• Day/Night Mode: Auto
• White Balance: Auto/Manual
• Image Enhancement: WDR;BLC;HLC;Global
• Noise Reduction: 3D DNR
• Image Settings: Brightness;Contrast;Smart IR;Sharpness;Anti-Banding;AGC

Interface

• Video Output: 1 HD analog output
• Built-in Microphone: Yes

Event

Motion Detection: 4 programmable motion areas

General

• Power: 12 VDC ± 25%, max. 7.2 W,*You are recommended to use one power adapter to supply the power for one camera.,If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required.
• Language: English
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
• Material: Main body: Metal, Enclosure: Plastic
• Communication: HIKVISION-C
• Dimension: Ø130.11 mm × 109.2 mm (Ø5.12″ × 4.3″)
• Weight: Approx. 570 g (1.26 lb.)
